Products: Motorized Potentiometers

Motorized potentiometers and cam timers are used in a variety of industrial automation and process control applications. They are simple to set-up. Easy to operate. No computers required. No software to write. Easy to maintain. Never obsolete. Micronor offers a wide range of configurations and options. Motor pots are made-to-order and typically 2-3 weeks ARO (expediting available). Options include:

1-turn and 10-turn configurations

Single or multiple potentiometers

Mounting options include DIN rail, front panel and chassis mount

Timing cycle options from 5 seconds to 24 hours

Potentiometer power capacities range from 2W to 1000W (including rheostats)

Motor options: AC (24, 48, 110 or 220VAC) DC (12 or 24V)

Limit switch options from 0 to 24 channels

Choice of single cam or fully programmable double cams

MR266 (rheostats) and MR2678 (potentiometer) series offer choice of 4-20mA or 0-10V remote control and feedback

PRSG option offers a wide adjustable speed range and quick stopping feature

Contact Dennis Horwitz at Micronor Inc. at (805) 499-0114 to discuss your special motor pot/cam timer requirements

MR267 \| Motor Pots with 4-20mA or 0-10V Remote Control Interface
	MR267 series allow direct upgrade of manual potentiometer control (up to 5W) to PLC or DCS control via 4-20mA or 0-10V input/ouput. Mounting styles: Front panel or DIN Rail Standard non-isolated or special isolated (1kV) interface 24 VDC operation User adjustable speed of 6-120s, preset to 10s Quick connections via PHOENIX CombiCon wiring plug Multiple ganged pots also available, contact Micronor sales for assistance For replacing potentiometer >5 Watts, see MR266 Series Worldwide Price for Model MR267-X-10-Y (Input=Non-Isolated 4-20mA, Output=None) is US$ 995.00 (Qty 1), FOB Newbury Park-CA-USA, Typical Lead Time 2-3 Weeks ARO
	Downloads: datasheet \| manual \| drawing \| image \| \|


<<previous \| next >>

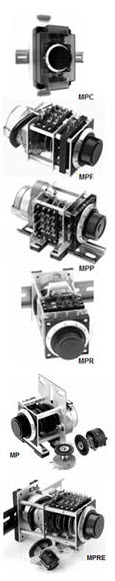

MPC MPF MPP MPR \| General Purpose 1-Turn Motor Pots
	Most general purpose and popular of all Micronor motorized potentiometers. Can accomodate multiple potentiometers as well as multiple cam switches. MPP is most popular model, DIN rail or chassis mount MPR is DIN rail, end mount MPF is front panel mount MPC in protective housing with see-thru cover MPPD is DIN rail mount and offers 2 timing cycles (Program execution and Return To Zero) See MR267 series for models with built-in 4-20mA or 0-10V remote control interface or feedback
	Downloads: datasheet \| manual \| drawing \| image \| \|

MPPS \| Special Purpose High Wattage (20-1000W) Motor Pot
	MPPS series are special purpose 1 Turn motorized potentiometers for high wattage applications. Up to 2 potentiometers or rheostats rated from 20 to 1000 Watts See MR268 series for high wattage models with built-in 4-20mA or 0-10V remote control interface or feedback Contact Dennis Horwitz at Micronor Inc. to discuss motorized rheostat solutions for applications exceeding 170 watts.
	Downloads: datasheet \| manual \| drawing \| image \| \|

MPZ MPRZ MPZD \| 10-Turn Motorized Potentiometers
	Versatile 10-turn motorized potentiometers where extra resolution is required. Can accomodate up to 2 potentiometers as well as multiple cam switches. MPZ is most popular 10-turn model, DIN rail or chassis mount MPRZ is DIN rail, end mount MPZD features dual timing cycle (Program execution and Return To Zero) See MR267 series for motor pots with 4-20mA or 0-10V remote control interfaces
	Downloads: datasheet \| manual \| drawing \| image \| \|

MR266 \| Motorized Rheostat with 4-20mA or 0-10V Remote Control
	MR266 series allow direct upgrade of manual rheostat or poteniometer controls (20-300W) to PLC or DCS control via 4-20mA or 0-10V input/output. Also an optional Front Panel Mount Potentiometer Control accessory allows high power units to be conveniently relocated from control panel to a control/equipment cabinet where high voltage/high current electrical connections and heat dissipation issues can be more optimally addressed. DIN Rail Mount Standard non-isolated or special isolated 1kV) interface option 24 VDC operation User adjustable 0-100% timing cycle of 10-120s, preset to 10s Quick connections via PHOENIX CombiCon wiring plug For applications >300 Watts, contact Micronor sales for assistance Worldwide Pricing (Qty 1) for most common configurations with I/0-CODE=10 (Input=Non-Isolated 4-20mA, Output=None), FOB Newbury Park-CA-USA, Typical Lead Time 4-5 Weeks ARO: Model MR266-10-AXX (20W), US$ 1295.00 Model MR266-10-BXX (60W), US$ 1495.00 Model MR266-10-CXX (170W), US$ 1695.00 Model MR266-10-DXX (300W), US$ 2495.00
	Downloads: datasheet \| manual \| drawing \| image \| \|
